HighRise Folding Rear Entry Step (Fits 3" x 2" Bumper Beam)

PreviousNext
Part #409924-409926UPC: 040236445879
0
Google Plus
0

The HighRise™ folding rear entry step is an innovative accessory for semi trailers, box trucks and flat decks. It provides safer, easier access to the rear cargo area, featuring grated steel, high-traction treads. This model easily bolts onto virtually any 3" x 2" bumper beam and has an auto-stowing design to prevent the step from being damaged when backing up.

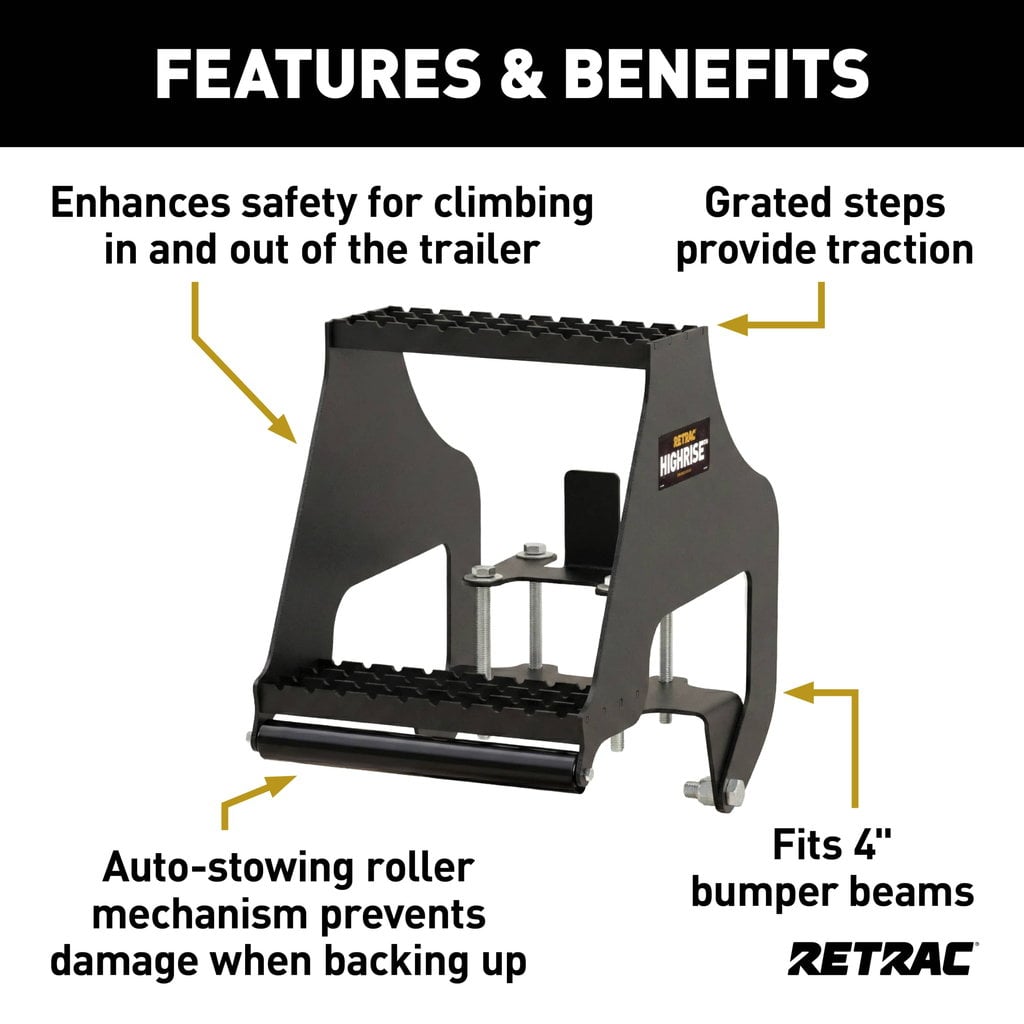

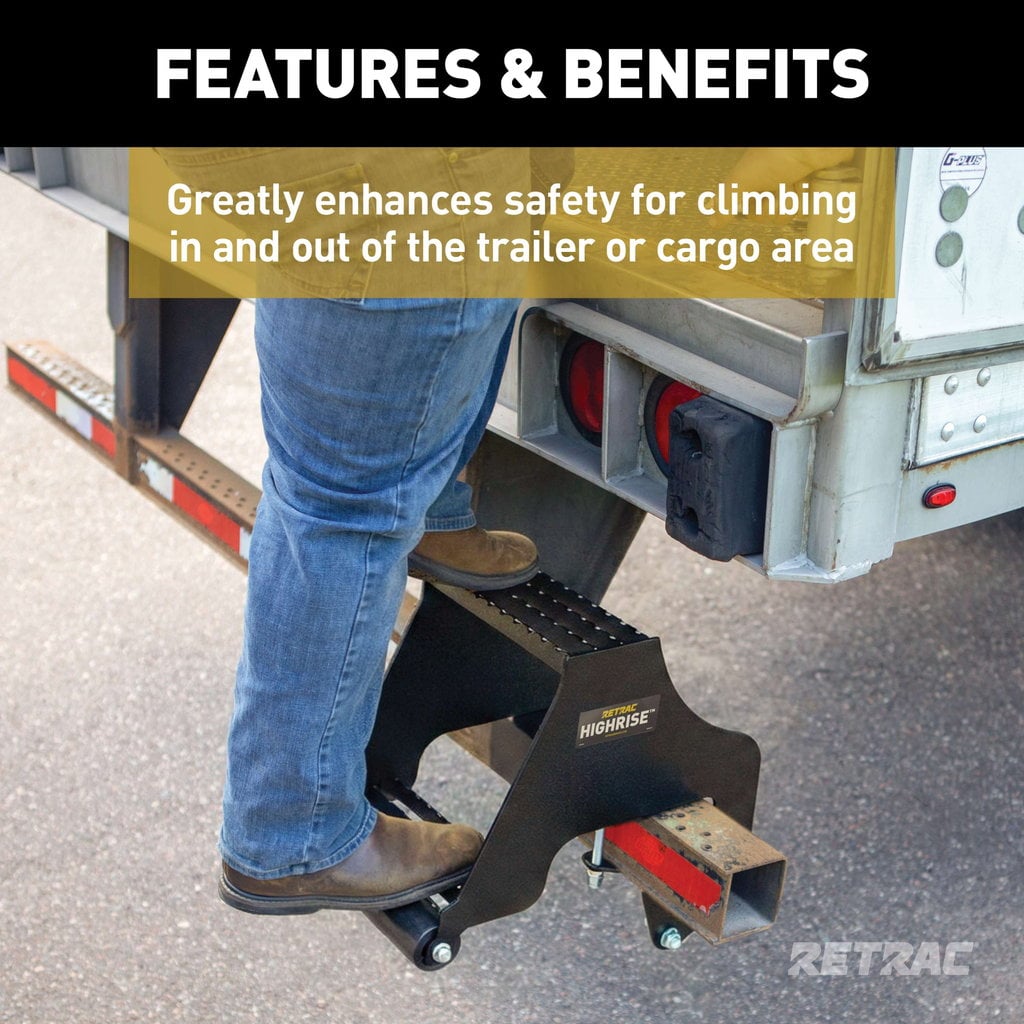

  • Adds a safer step point for climbing into or out of the trailer or cargo area

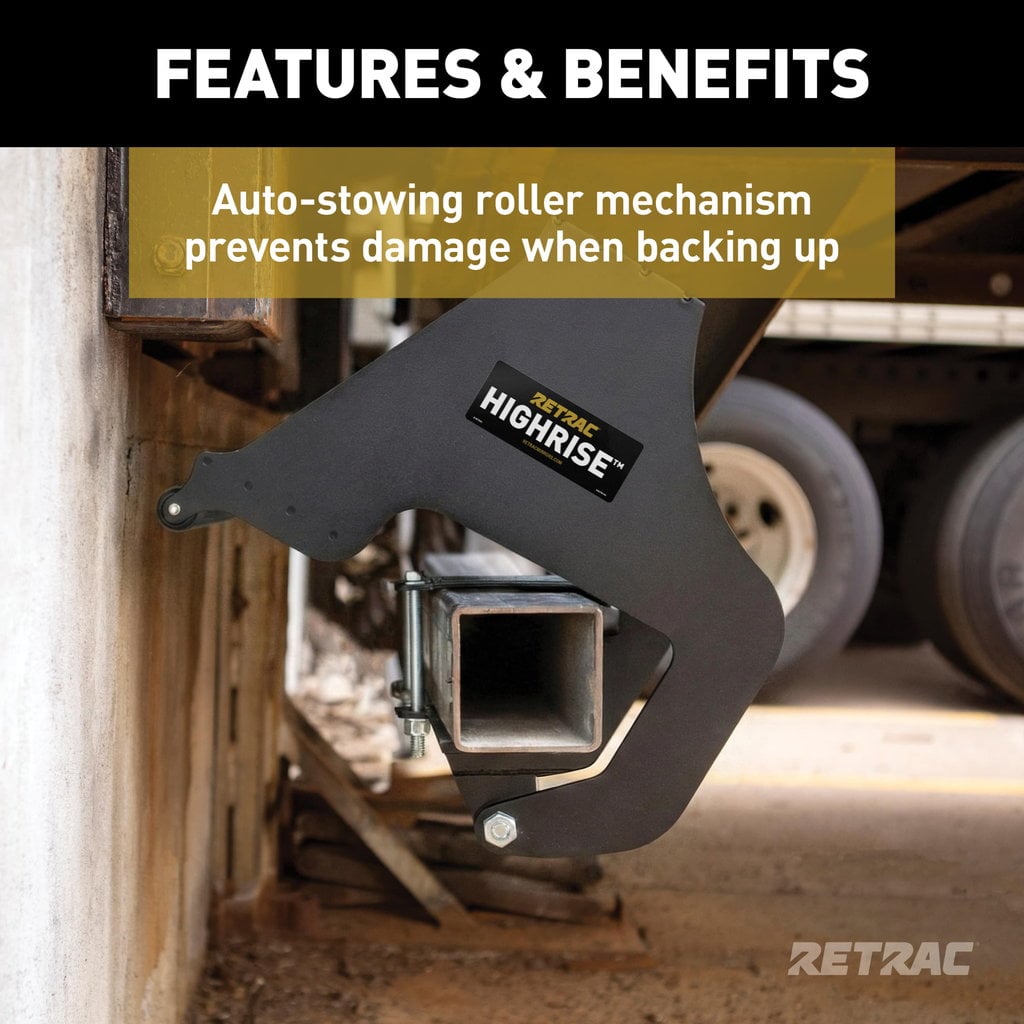

  • Auto-stowing polyurethane roller mechanism prevents damage when backing up
  • Ergonomic design reduces strain and promotes worker health and wellness
  • Easier rear access increases speed and efficiency on the job

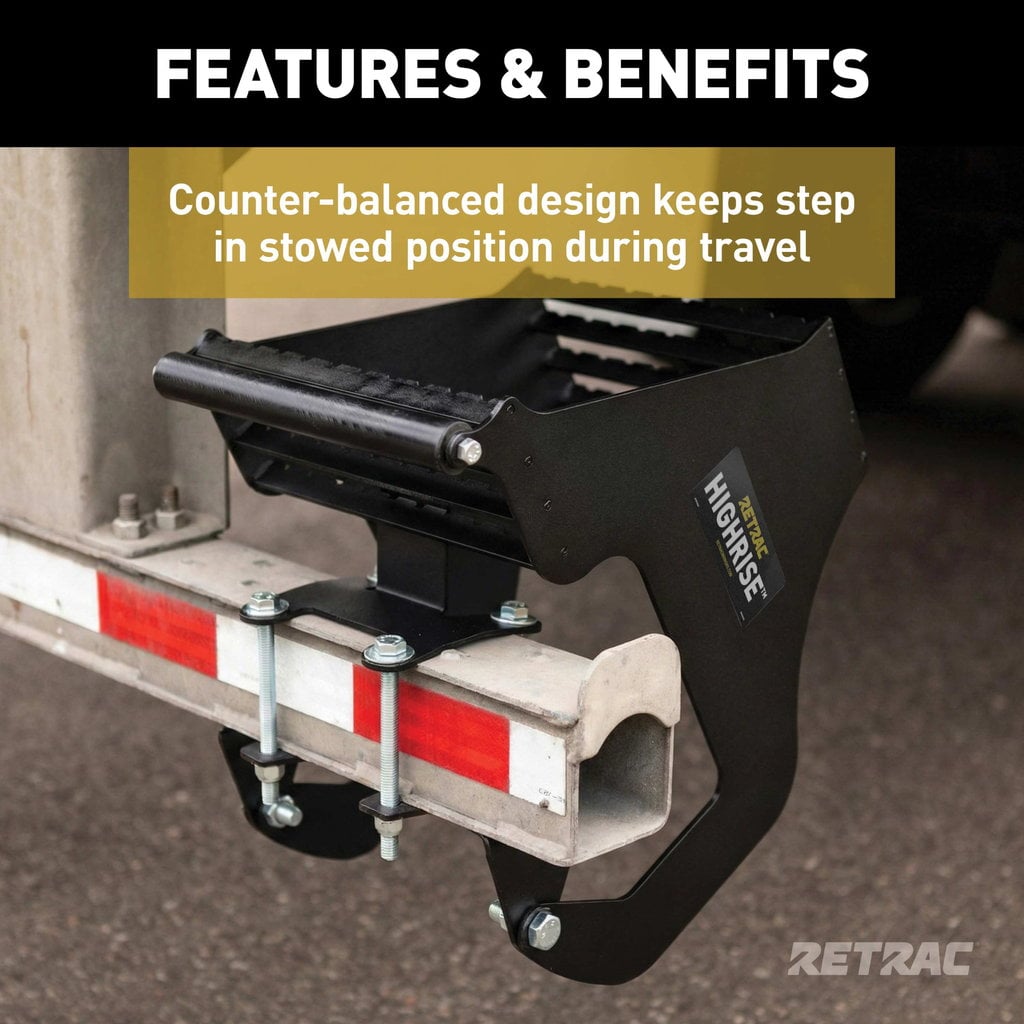

  • Counter-balanced design keeps step in stowed position during travel
  • Also fits 4" bumper beam without adapter bracket

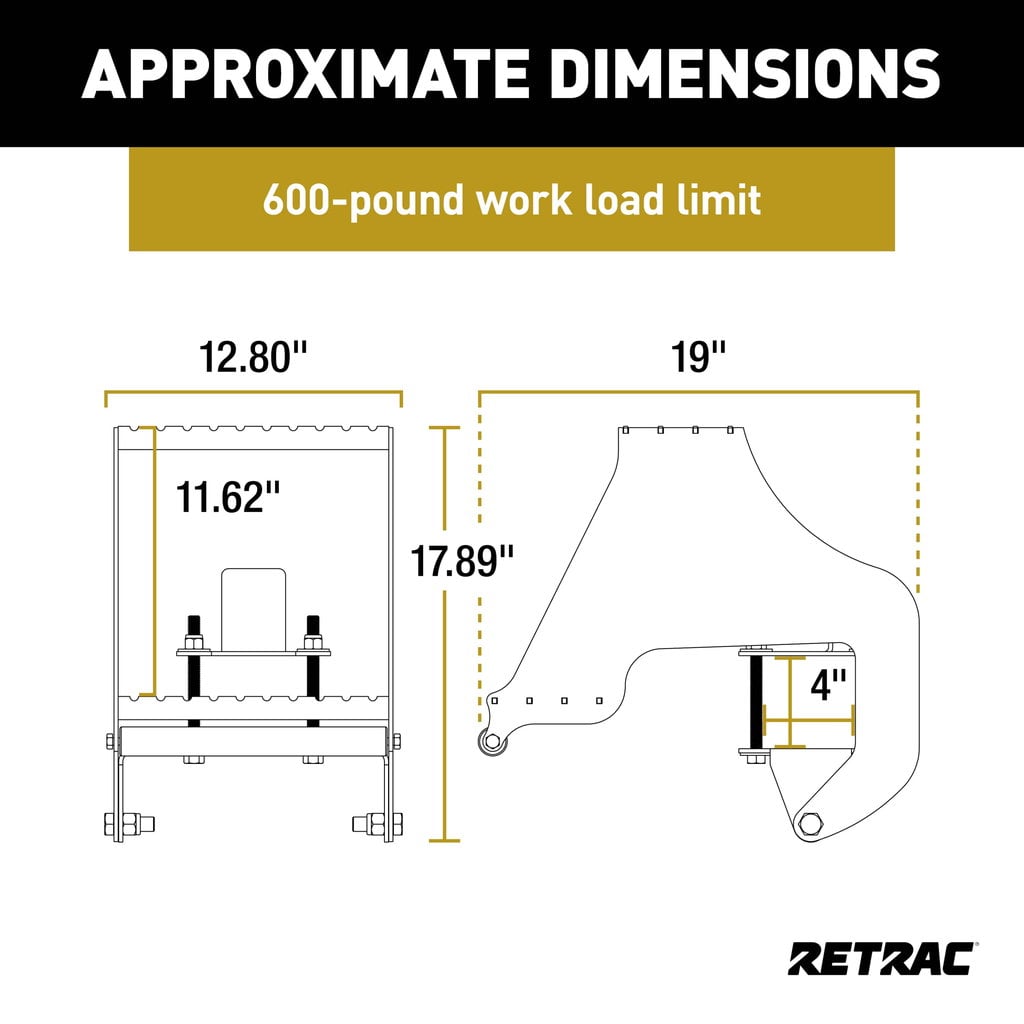

  • 600-pound work load limit
  • High-strength 7-gauge steel construction
  • Protected by a highly durable black carbide powder coat finish

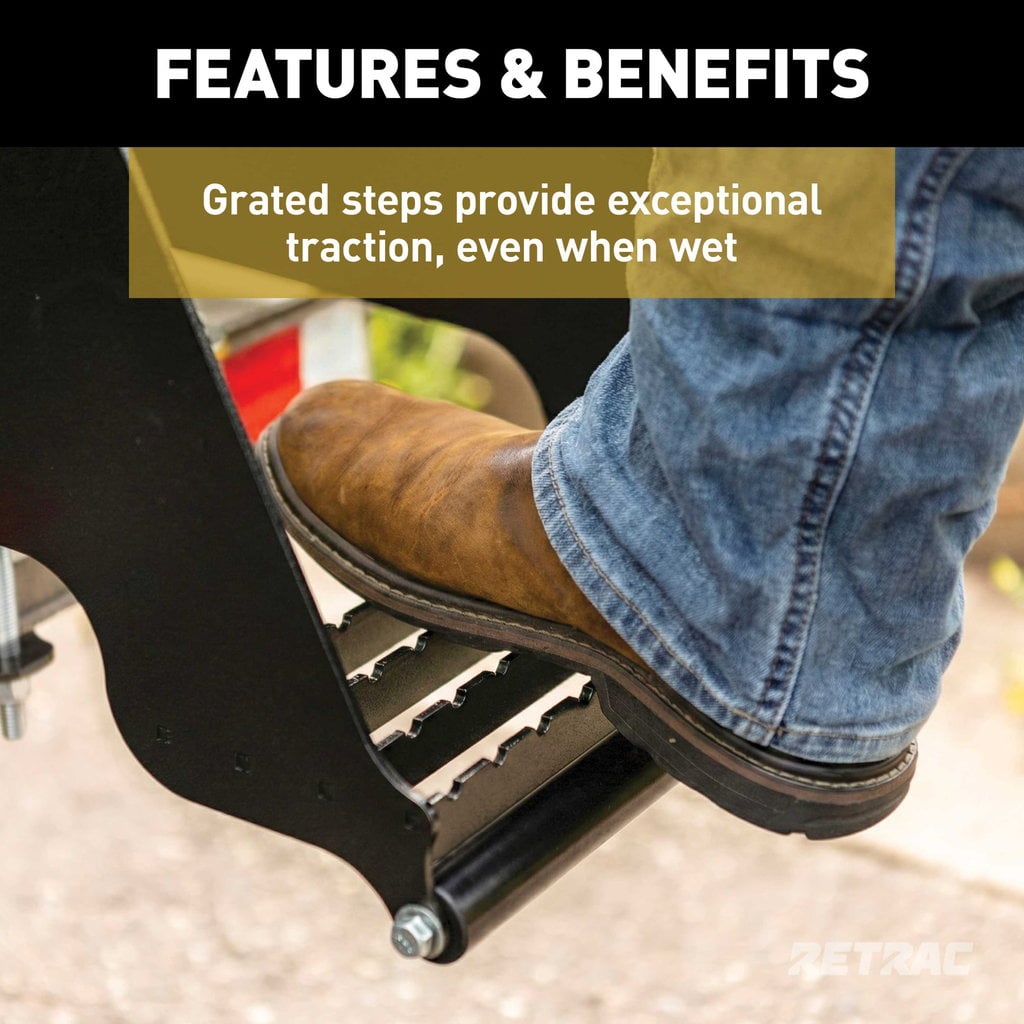

  • Grated steps provide exceptional traction, even when wet

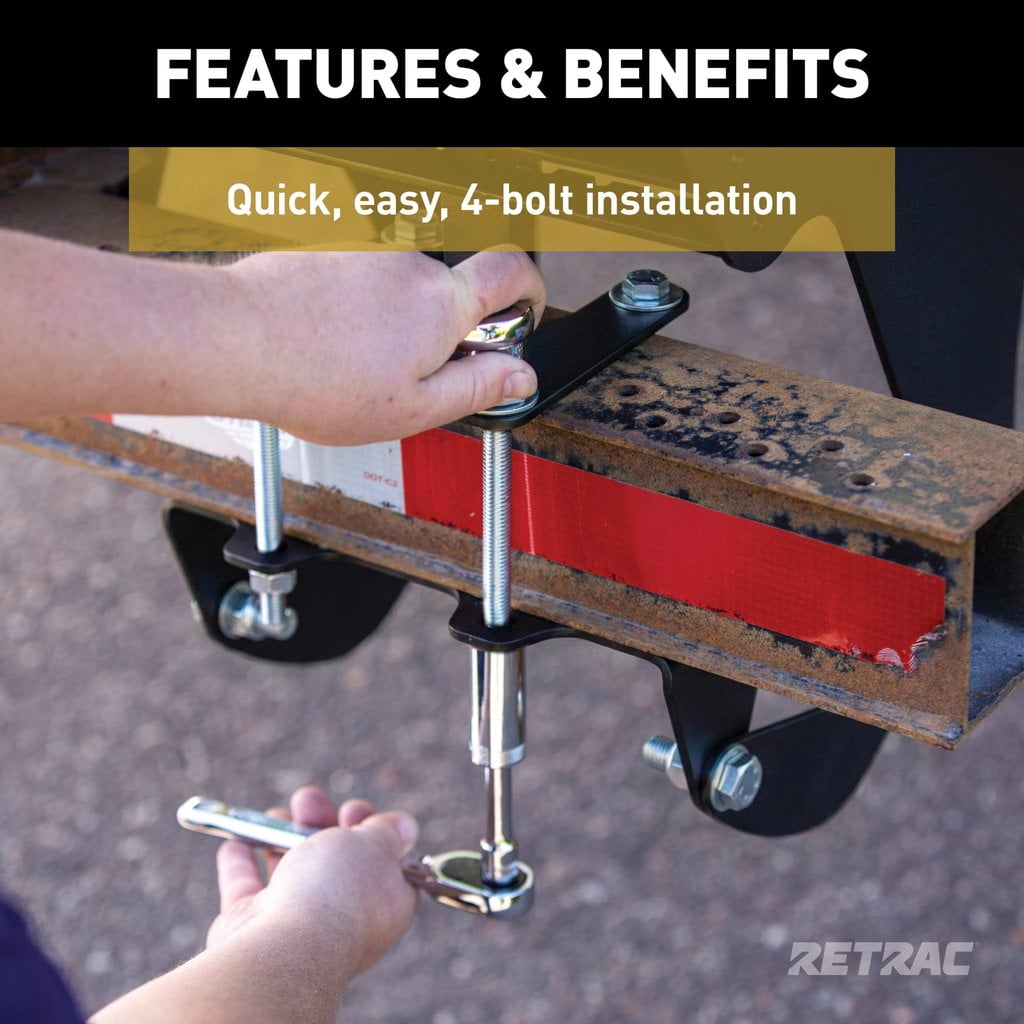

  • Quick, easy, 4-bolt installation in minutes
  • Assembled in the USA (may include imported hardware)
  • Included adapter bracket enables fitment with 3" x 2" bumper beam
PreviousNext

More Details

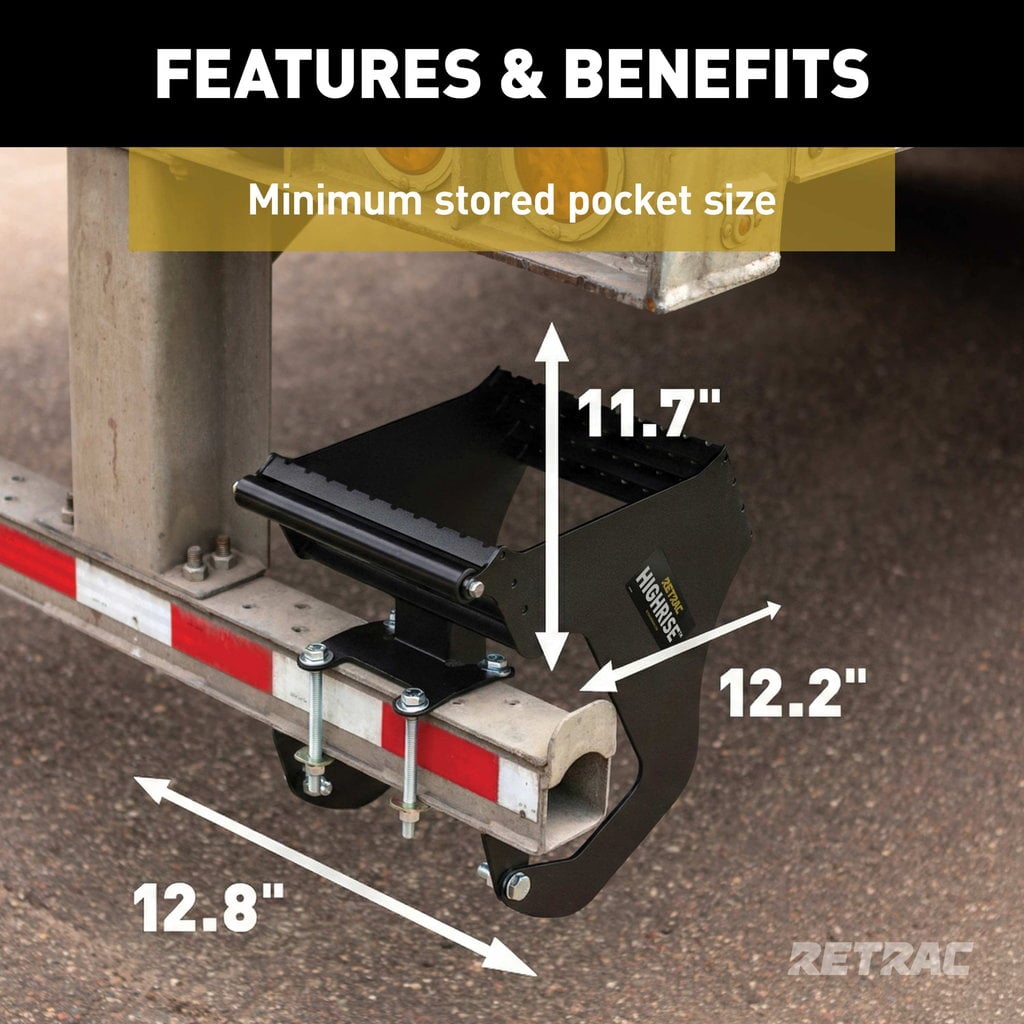

Minimum pocket size 13" wide x 15.75" deep from the back of the bumper in stored position (15.625" needed from bottom of bumper to deck; 4.375" ground clearance required below bumper) As vehicle / trailer heights may vary, it is recommended that the operator / installer review for proper ground clearance.Patent-pending

Technical Details

Side Application Type DescriptionNot Applicable
Shipping Weight36.000
Parcel AllowedYes
HUB_USAD05
Mount Type DescriptionNot Applicable
Part Type*
MaterialCarbon Steel
FinishZinc Plated
WarrantyLimited Lifetime Warranty (Five-Year Finish, One-Year Parts)
Pallet Qty0.000
Master Case Qty0
